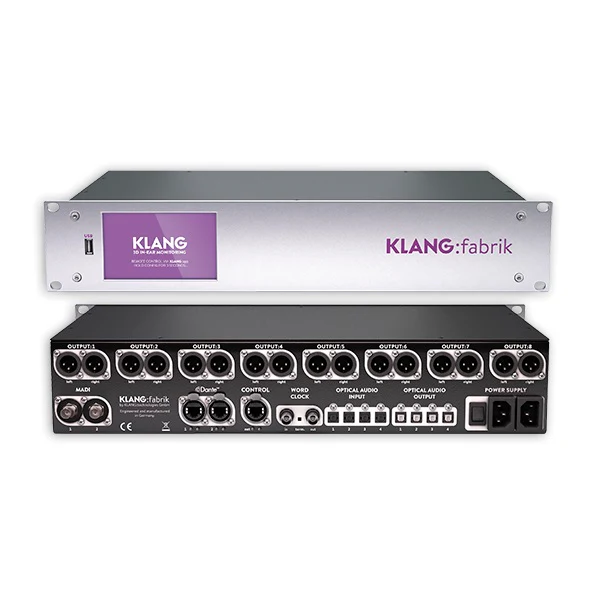

Klang Fabrik
KLANG:fabrik is the core of KLANG's monitoring solution. It combines the latest and finest HD audio algorithms with a multitude of flexible audio interfaces (i.e. MADI, Danteâ„¢, compatible to ADAT) in order to work with professional mixing desks and stage boxes of any kind. Up to 16 musicians receive their individual 3D mixes with one KLANG:fabrik. If your band needs more mixes, simply daisy-chain multiple devices
The 3D monitoring mixes are sent from KLANG:fabrik to radio transmitters or headphone amps via XLR, back to the ears of the musicians. Thanks to the high-performance processors, this can happen without any noticeable latency. Use KLANG's app on any device (iOS, Android, Windows or Mac), or the faders of your mixing desk to control KLANG:fabrik from where you are.
And there is more, KLANG:fabrik is at the same time fully flexible audio network router of up to 128 MADI inputs, 64 Dante inputs and 32 ADAT compatible inputs to up to 64 MADI outputs, 64 Dante outputs and 32 ADAT compatible outputs.
Key Features:
- Professional personal monitoring system
- Natural 3D sound through binaural technology
- Easily connect to your monitor console or rack mixer
- Digital I/O with powerful routing options:Â Dante | AES67 | MADI | ADAT comp.
- Up to 16 musicians per KLANG:fabrik
- Up to 56 input channels
- Root-Intensity EQs
- Remote control from DiGiCo SD consoles
- Read about new KOS 4.0 features on our Blog
Tech Specs:
- 16 x high-class balanced analog line level outputs
- 64 x 64 (128x0 switchable) channel optional MADI BNC interface (Input/Output)
- 64 x 64 channel Danteâ„¢ interface (Input/Output)
- 32 x 32 channel ADAT compatible (Input/Output)
- Word Clock (Input/Output)
- 2x redundant professional power supplies 100-240V
- 2x locking IEC power connectors
- Latency less than 3ms
- 96 kHz | 88.2 kHz | 48 kHz | 44.1 kHz
Original: $5,293.43
-70%$5,293.43
$1,588.03Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
KLANG:fabrik is the core of KLANG's monitoring solution. It combines the latest and finest HD audio algorithms with a multitude of flexible audio interfaces (i.e. MADI, Danteâ„¢, compatible to ADAT) in order to work with professional mixing desks and stage boxes of any kind. Up to 16 musicians receive their individual 3D mixes with one KLANG:fabrik. If your band needs more mixes, simply daisy-chain multiple devices
The 3D monitoring mixes are sent from KLANG:fabrik to radio transmitters or headphone amps via XLR, back to the ears of the musicians. Thanks to the high-performance processors, this can happen without any noticeable latency. Use KLANG's app on any device (iOS, Android, Windows or Mac), or the faders of your mixing desk to control KLANG:fabrik from where you are.
And there is more, KLANG:fabrik is at the same time fully flexible audio network router of up to 128 MADI inputs, 64 Dante inputs and 32 ADAT compatible inputs to up to 64 MADI outputs, 64 Dante outputs and 32 ADAT compatible outputs.
Key Features:
- Professional personal monitoring system
- Natural 3D sound through binaural technology
- Easily connect to your monitor console or rack mixer
- Digital I/O with powerful routing options:Â Dante | AES67 | MADI | ADAT comp.
- Up to 16 musicians per KLANG:fabrik
- Up to 56 input channels
- Root-Intensity EQs
- Remote control from DiGiCo SD consoles
- Read about new KOS 4.0 features on our Blog
Tech Specs:
- 16 x high-class balanced analog line level outputs
- 64 x 64 (128x0 switchable) channel optional MADI BNC interface (Input/Output)
- 64 x 64 channel Danteâ„¢ interface (Input/Output)
- 32 x 32 channel ADAT compatible (Input/Output)
- Word Clock (Input/Output)
- 2x redundant professional power supplies 100-240V
- 2x locking IEC power connectors
- Latency less than 3ms
- 96 kHz | 88.2 kHz | 48 kHz | 44.1 kHz
