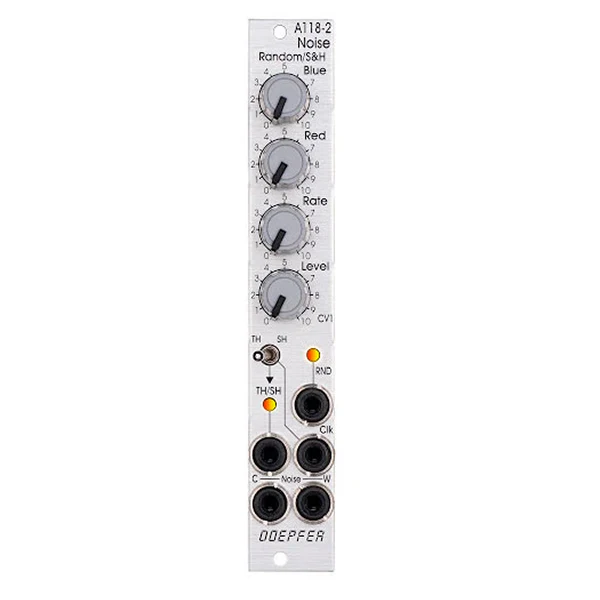

DOEPFER A-118-2 Noise/Random Slim Line
The DOEPFER A-118-2 module generates the signals white noise, colored noise, continuous random voltage and stepped random voltage (derived from the continuous random voltage by means of a S&H/T&H unit). The noise signal is generated 100% analog by amplification of the noise of a transistor. White and colored noise are usually used as audio sources. The random voltages are normally used as control voltages (e.g. for filter frequency or any other voltage controlled parameter).
The DOEPFER A-118-2 gives you the ability to mix the relative amounts of Red (low frequency component) and Blue noise (high frequency component) in the colored noise output. For the continuous random voltage the rate of change (Rate) and amplitude (Level) of the random voltage can be adjusted. The continuous random voltage is derived from the colored noise signal by low pass filtering. Consequently the settings of the controls for the colored noise (Blue, Red) affect the behaviour of the random voltage ! A dual color LED (red = positive / yellow = negative output voltage) indicates the continuous random voltage. The continuous random voltage is used as source for the S&H/T&H unit. The type of operation can be set to S&H (sample and hold) or T&H (track and hold). When T&H is chosen the output signal follows the input signal (= continuous random voltage) as long as the Clock input is "high". As soon as the clock signal changes to "low" the last voltage is stored. When S&H is chosen the input signal (= continuous random voltage) is sampled at the rising edge of the Clock signal. For the Clock signal a "digital" signal (e.g. Clock, Gate, rectangle output of an LFO) is required. It does not work with slowly changing continuous CV signals. Another dual color LED (red = positive / yellow = negative output voltage) indicates the stepped random voltage.
Key Features:
- 4HP noise/random-voltage generator Eurorack module
- Simple controls let you adjust blue and red noise amounts to fine-tune your noise
- Separate outputs for colored and white noise offers flexible integration into your rig
- Rate and level knobs provide control over the random voltage signal
- Switchable sample-and-hold/track-and-hold circuitry onboard
- T&H mode uses external clock input
Original: $98.10
-70%$98.10
$29.43Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The DOEPFER A-118-2 module generates the signals white noise, colored noise, continuous random voltage and stepped random voltage (derived from the continuous random voltage by means of a S&H/T&H unit). The noise signal is generated 100% analog by amplification of the noise of a transistor. White and colored noise are usually used as audio sources. The random voltages are normally used as control voltages (e.g. for filter frequency or any other voltage controlled parameter).
The DOEPFER A-118-2 gives you the ability to mix the relative amounts of Red (low frequency component) and Blue noise (high frequency component) in the colored noise output. For the continuous random voltage the rate of change (Rate) and amplitude (Level) of the random voltage can be adjusted. The continuous random voltage is derived from the colored noise signal by low pass filtering. Consequently the settings of the controls for the colored noise (Blue, Red) affect the behaviour of the random voltage ! A dual color LED (red = positive / yellow = negative output voltage) indicates the continuous random voltage. The continuous random voltage is used as source for the S&H/T&H unit. The type of operation can be set to S&H (sample and hold) or T&H (track and hold). When T&H is chosen the output signal follows the input signal (= continuous random voltage) as long as the Clock input is "high". As soon as the clock signal changes to "low" the last voltage is stored. When S&H is chosen the input signal (= continuous random voltage) is sampled at the rising edge of the Clock signal. For the Clock signal a "digital" signal (e.g. Clock, Gate, rectangle output of an LFO) is required. It does not work with slowly changing continuous CV signals. Another dual color LED (red = positive / yellow = negative output voltage) indicates the stepped random voltage.
Key Features:
- 4HP noise/random-voltage generator Eurorack module
- Simple controls let you adjust blue and red noise amounts to fine-tune your noise
- Separate outputs for colored and white noise offers flexible integration into your rig
- Rate and level knobs provide control over the random voltage signal
- Switchable sample-and-hold/track-and-hold circuitry onboard
- T&H mode uses external clock input
